Modular Prefab/Mobile Flat Pack House

Packaging:
In bulk
Productivity:
100000 Square Meter per month
Brand:
TPA
Transportation:
Ocean
Place of Origin:
China,Foshan
Supply Ability:
100000 Square Meter per month
Certificate:
SGS,BV
HS Code:
9406900090/7308900000
Port:
Guangzhou

Basic Info

Model No.: Prefabricated T House-1

Product Description

Modular Prefab/Mobile Flat Pack House

T Type Prefab House


Prefab T house is made of light steel structure for its main frame and sandwich panel for wall and roof. The stuffing of sandwich panel can be rock wool, polystyrene (EPS) and polyurethane (PU).
And for the T type house the steel structure frame is inside the wall to better protect the steel structure frame. The service life can be more than 10 years.
The structure is connected by bolts and the walls are fixed with rivets. When loading the steel structure parts and panels are light and easy to pack and transport.
This house is widely used as temporary office, temporary hospital, family house, dormitory, canteen and so on.



Prefab House Characterstics


1.Environmentally friendly, no waste produced during assemble.

2.Flexibility when fixing doors, windows and interior partitions.

3.Beautiful appearance, different colors for the walls and roof.

4.Cost saving and convenient to transport.

5.Rust proof with around 10 years service life.

6.Good ability to assemble and disassemble for several times.

7.Heatproof, sound proof and waterproof.


Prefab House Structural Drawing

002


T Type Prefab House Picture Display








Materials List

Steel column
100*4.0
Main beam
HN198*99
Floor purlin C120*40·20
Roof beam 100*50*1.5+50*25*1.5
Roof purlin
c80*35*20
Steel staircase
160*64 5+3.0mm chequered plate
Handrail
L40*3.0+30*2.0
Connecting plate 2mm-10mm steel sheet
Roof panel 50mm EPS sandwich panel
Wall panel 50mm EPS sandwich panel
Floor plate 18mm cement board
Door EPS sandwich panel door
Window PCV/aluminum slidding window
Ceiling
Pvc gypsum board
Accessories
Screw, self-tapping screw, glue

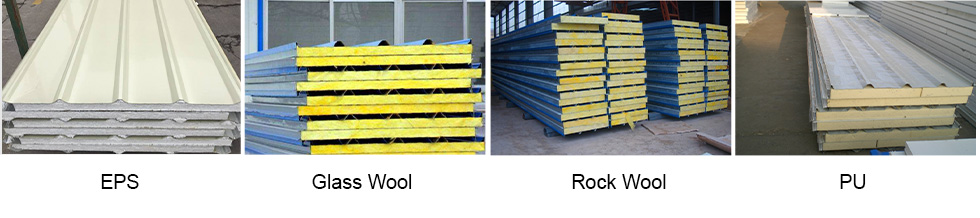

Prefab House Sandwich Panel Instruction


I>EPS sandwich panel(Wall&Roof)
Corrugated steel sheet are made by hot rolled galvanized steel coil, then treated by degreasing, phosphating, chromate and others. Coated with organic fluorine, resin coating.

II>Glass wool sandwich panel(Wall&Roof)
Glass wool sandwich panel consists of glass fiber and 2 layers of steel sheets. Glass wool sandwich panels are excellent choice for heat insulated roof and wall cladding of industrial and commercial buildings.

III>Rock wool sandwich panel(Wall&Roof)
Rock wool sandwich panel is applicable for the project of high request firing prevention.

IV>PU sandwich panel(Wall&Roof)
Polyurethane sandwich panel is a upgraded material compare to traditional building material, as a kind of new type of multi-functional building material, it consists of steel plate at both side and polystyrene sandwiched.




Wall Panel Insulation Showcase


Roof Panel Insulation Showcase



About Us

1


Foshan TianPuAn Building Materials Technology Co.,Ltd.(TPA housing),was is founded in 2008. Since then, we have been a professional manufacturer of steel structure building,container house,prefabricated house, railings, light steel villa, sandwich panel and profiled steel with ISO9001&SGS certification. We have two production workshop(Lishui town/Gaoming town)with total area covered 20,000square meter plant and equipped an automatic spraying line and automatic welding machine.




Prefab House Production


We focus on producing custom-made economic and environmentally friendly prefab house. With the Specialized technology professional design team and high-quality construction team we undertaken hundreds of prefab buildings production and installation, got the consistent high praise of the clients.



Packing & Shipping



Our Services

1. Project Services
Simple or complex,our specical project services team quickly an expertly handle your project.

2. Private manufacturing services(OEM)
We can manufacture and deliver high quality metal building system under your brand name.
Private Label Services.

3.Private Label Services
Promote your company name and brand as a top resource for cost-effective, quality metal buildings.
